Brand:
ECCO
Origin: USA
Click for:

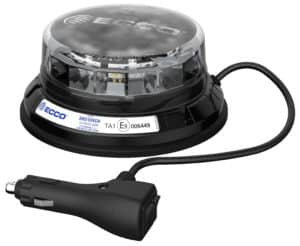

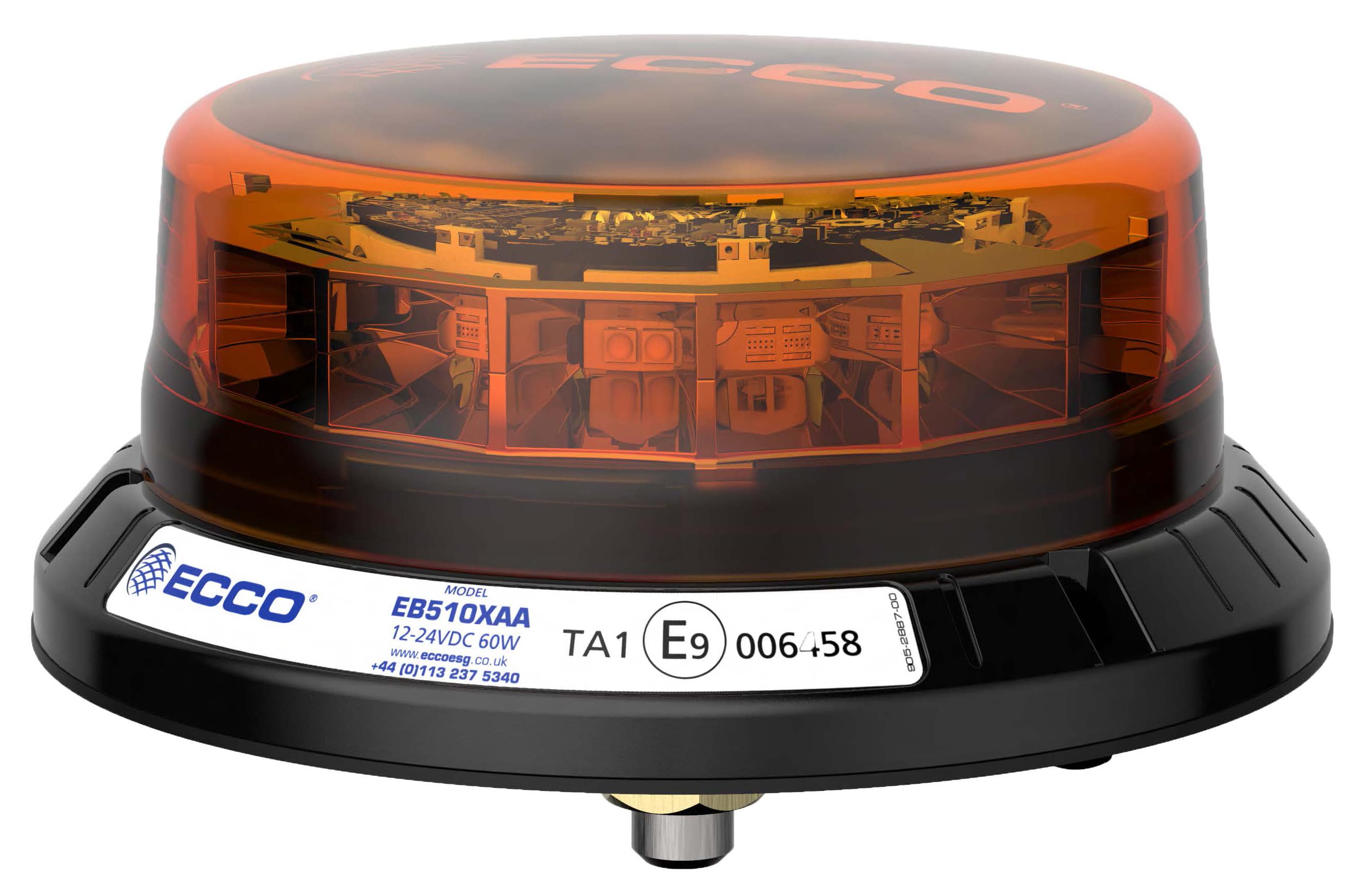

Low Profile LED Beacon
The Low Profile R65 Beacon utilises powerful LEDs, arranged to produce a 360° flash pattern by combining the solid-state, maintenance free long-life nature of LED technology. With additional features including multiple flash patterns, synchronisation and vigorous testing to the ECCO standard and OEM specifications.
This high-performance range has improved EMC performance to CISPR 25 level 3, is robust and compact in a popular housing design and is available in four standard mounting options. This range is designed to maximise resilience to excessive vibration, increasing the life of the product and is backed by our five-year no-hassle warranty. Beacons with Amber LEDs (Amber or Clear lens) produce a simulated rotate that is R65 Class 1 compliant.
ECCO EB5100 Series Low-profile LED Beacon Features & Benefits ▲
- Ultra compact, low profile beacon at only 63mm tall
- Protect your sensitive electronics with CISPR 25 level 3
- Be seen with the highest SAE Class I brightness
- 12 flash patterns including simulated rotation
- Built tough with an aluminium base and reinforced polycarbonate lens
- Four mounting options available (Single, 3 bolt, DIN pole, and magnetic)
- Great choice for your light vehicles in construction and mining, municipal fleet, utility, and service trucks
ECCO EB5100 Series Low-profile LED Beacon Video ▲
ECCO EB5100 Series Low-profile LED Beacon Specifications ▲
| Voltage | 10-32V DC |
| Flash Pattern | 12 |
| Mount | Single, 3 Bolt, DIN Pole or Magnetic Mount |
| Dimensions (W x H x L) | 5.9 x 2.83 x 5.9” inches (149 x 72 x 149 mm) |
| Approvals | R65, R10, CISPR25, IP69K |
| Warranty | 5 Years |
ECCO EB5100 Series Low-profile LED Beacon Part Numbers
| Part No. | Mount | Lens | LED Color |
| EB5101XX | Single Bolt | Amber or Clear | Amber or Green |
| EB5102XX | 3 Bolt | Amber or Clear | Amber or Green |
| EB5103XX | DIN Pole | Amber or Clear | Amber or Green |
| EB5104XX | Magnetic Mount | Amber or Clear | Amber or Green |
*Replace ‘XX’ in Part Number with desired color lens (A = Amber, C = Clear) then colour LED (A = Amber, G = Green)
ECCO EB5100 Series Low-profile LED Beacon Specifications Flyer (PDF) ▲
Applications: Light vehicles in construction and mining, municipal fleet, utility, and service trucks.
Dimensions:
Width: 5.9" (149 mm), Height: 2.83" (72 mm), Length: 149" (5.9 mm)
