No more dead batteries!
The FlexMod electronic voltage sensing relay & timer monitors both battery voltage and ignition status, shutting down non-critical loads when the cutoff voltage is reached, or at the set time after the ignition is turned off. It is a timer and voltage sensor in one easy-to- connect unit.
Ideal for use in emergency vehicles, the unit senses both voltage and time; after the vehicle engine is turned off, if either the cutoff voltage or time limit is reached, the Voltage Sensing Relay & Timer FlexMod will shut down the auxiliary loads. The dual technology in package provides double protection.
The FlexMod electronic voltage sensing relay & timer opens up options for mounting in a small space, and simplifies wiring and other components.

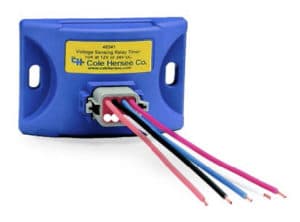

Cole Hersee FlexMod Voltage Sensing Relay and Timer Series Features & Benefits ▲
- Ideal for emergency vehicles and many other applications
- Protects starting battery from being drained by auxiliary loads
- Compact design (4 x 3 x 1 ), and solid-state unit is waterproof, dustproof and vibration-proof. Mounts anywhere on a vehicle, even places where road-splash is a problem. Sealed to IP67 standard
- Preserves starting power; eliminates downtime and jump starts due to dead batteries. Simultaneous time and voltage sensing protects starting, even when the vehicle is running “in deficit”
- Monitors voltage and time simultaneously, providing double the protection to batteries. Battery will not be drained if battery voltage gets low before timer has run out.

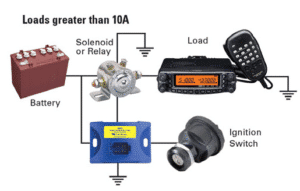

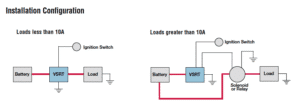

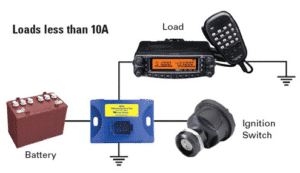

- 10A rating means it can handle many loads directly or drive a relay or solenoid for higher amperage
- Unit is auto-ranging – senses 12 Vdc or 24 Vdc systems
- Unit can be used as-is, with factory-programmed presets, or can be programmed by dealers to a broad scale of values
Cole Hersee FlexMod Voltage Sensing Relay and Timer Series Specifications ▲
| Voltage | 12-24V DC (Auto Ranging) |
| Humidity | 0 to 90% RH |
| Vibration | 10-500Hz |
| Operating Temp | -40° to +85°C |
| Ingress Protection | IP67 |
| Dimensions (WxHxD) | 4.0x2.70x1.31” (101.6x68.6x33.3mm) |
Electrical Characteristics
| CHARACTERISTIC | MIN | TYPICAL | MAX | NOTES |
|---|---|---|---|---|
| Operating voltage (12V) | 9V | 12V | 32V | Operating voltage is the system voltage |
| Factory Standard Disconnect Voltage (12V systems) | 12.05V | 12.1V | 12.15V | When voltage drops below 12.1V, system activates the alarm for one min. and then disconnects loads |
| Factory Standard Disconnect Voltage (24V systems) | 24.1V | 24.2V | 24.3V | When voltage drops below 24.2V, system activates the alarm for one min. and then disconnects loads |
| Quiescent Current | 1mA | 2mA | Circuit operating current | |
| Load Current | 10A | 10A @ 85°C | ||
| Overcurrent Protection | 15A | System will disconnect after 1 second of excessive current | ||
| Factory Standard Key-Off Timer | 15 min | After key-off, unit will wait a set time before disconnecting |
Environmental Specifications
| CHARACTERISTIC | PARAMETER | NOTES |
|---|---|---|
| Operating Temperature Range | -40° to +85°C -40° to +185°F | 10A at 85°C |
| Ingress Protection | IP67 | Per IEC 529 |
| Humidity | 0 to 90% RH | |
| Vibration | 10-500Hz | Per SAE J1455 |
| Shock | Per SAE J1455 | |
| Thermal Shock | Per SAE J1455 | |
| Inductive Transient | +/- 600V | Per SAE J1455 |
| Load Dump | +150V | Per SAE J1455 |
Cole Hersee FlexMod Voltage Sensing Relay and Timer Series Specifications Flyer (PDF) ▲

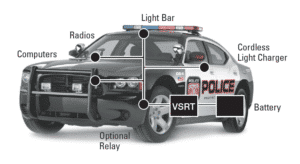

Applications: Heavy-duty mining and construction vehicles, emergency vehicles, off-road vehicles

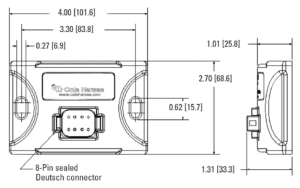

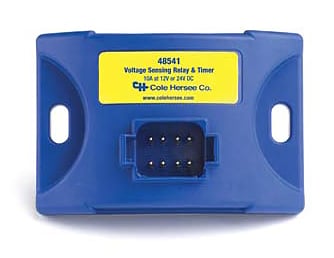

Dimensions:
Width: 4.0" (101.6 mm), Height: 2.70" (68.6 mm), Depth: 1.31" (33.3 mm)
